VHB Tape / Acrylic Foam Tape
for Clean, Strong & Permanent Industrial Bonding
Stronghold Packaging provides high bond double sided acrylic foam tapes for signage, automotive trims, ACP panels, glass, metal, plastic parts, appliance panels, electronics, interiors, and OEM assembly.
Use VHB-type acrylic foam tape where you need clean bonding without visible screws, rivets, drilling marks, welding spots, or messy liquid adhesives.
- Key Points
- ৹ For metal, glass, aluminium, acrylic, painted surfaces, and selected plastics
- Suitable for signage, automotive, ACP, electronics, appliances, and industrial mounting
- Available in clear, grey, black, custom widths, rolls, and die-cut formats
- Application guidance available before sample or bulk order
When Normal Foam Tape, Screws, or Glue Are Not Enough
Ordinary foam tape, screws, silicone, or glue may work for simple jobs, but industrial bonding needs better application matching. Wrong tape selection can lead to panel lifting, edge failure, vibration issues, or callbacks after installation.
Common Problems
Glue Creates Messy Finishing
Liquid adhesive needs curing time and may affect production speed.
Panels Lift or Fall After Installation
Often caused by wrong tape grade, poor surface cleaning, low pressure, or unsuitable adhesive.
Screws Leave Visible Marks
Drilling can create holes, dents, rust points, and finishing rework.
Low-Cost Tape Fails in Heat or Vibration
Outdoor exposure, humidity, vibration, and surface mismatch can reduce bond performance.
Acrylic foam tape is a high-strength double sided bonding tape used for permanent mounting and industrial attachment. It helps spread stress across the bonded area and can reduce the need for mechanical fasteners in selected applications.
It is commonly searched as VHB tape, very high bond tape, acrylic foam tape, industrial bonding tape, and heavy duty mounting tape. For correct product selection, the tape should be chosen by surface, load, environment, thickness, and application method.
What Is Acrylic Foam / VHB-Type Tape?

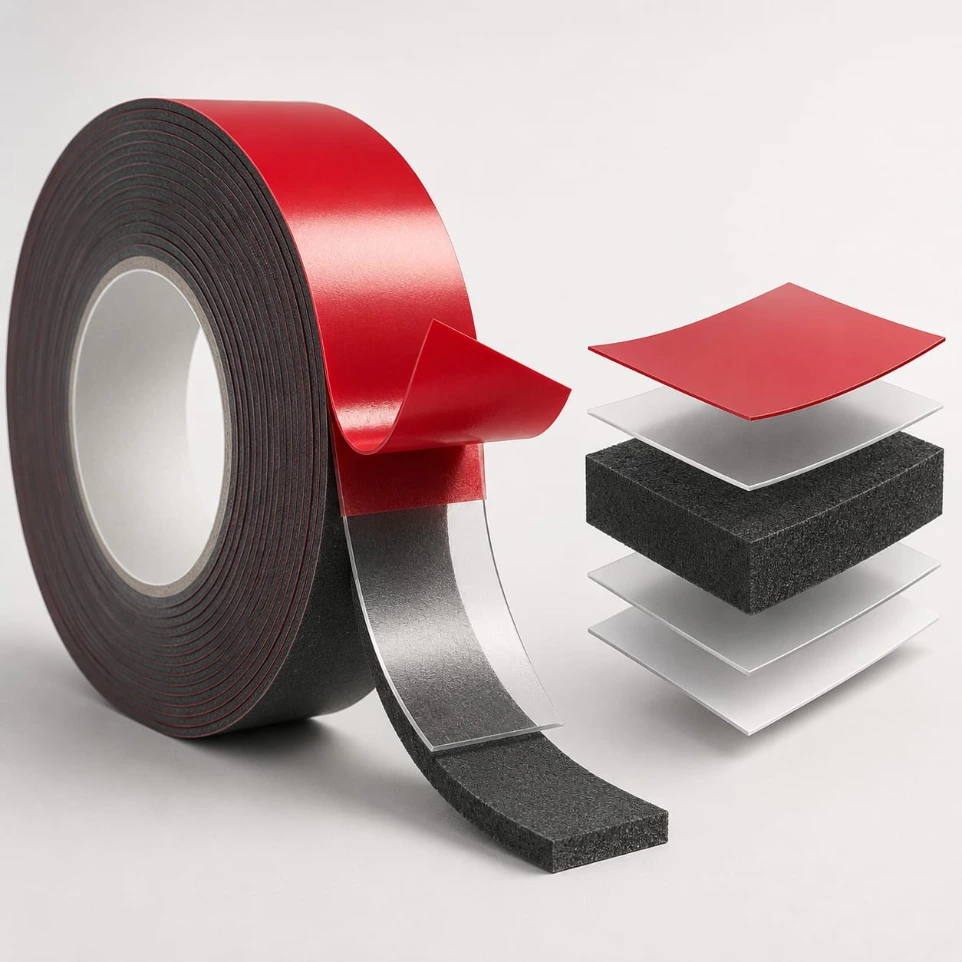

Product Construction

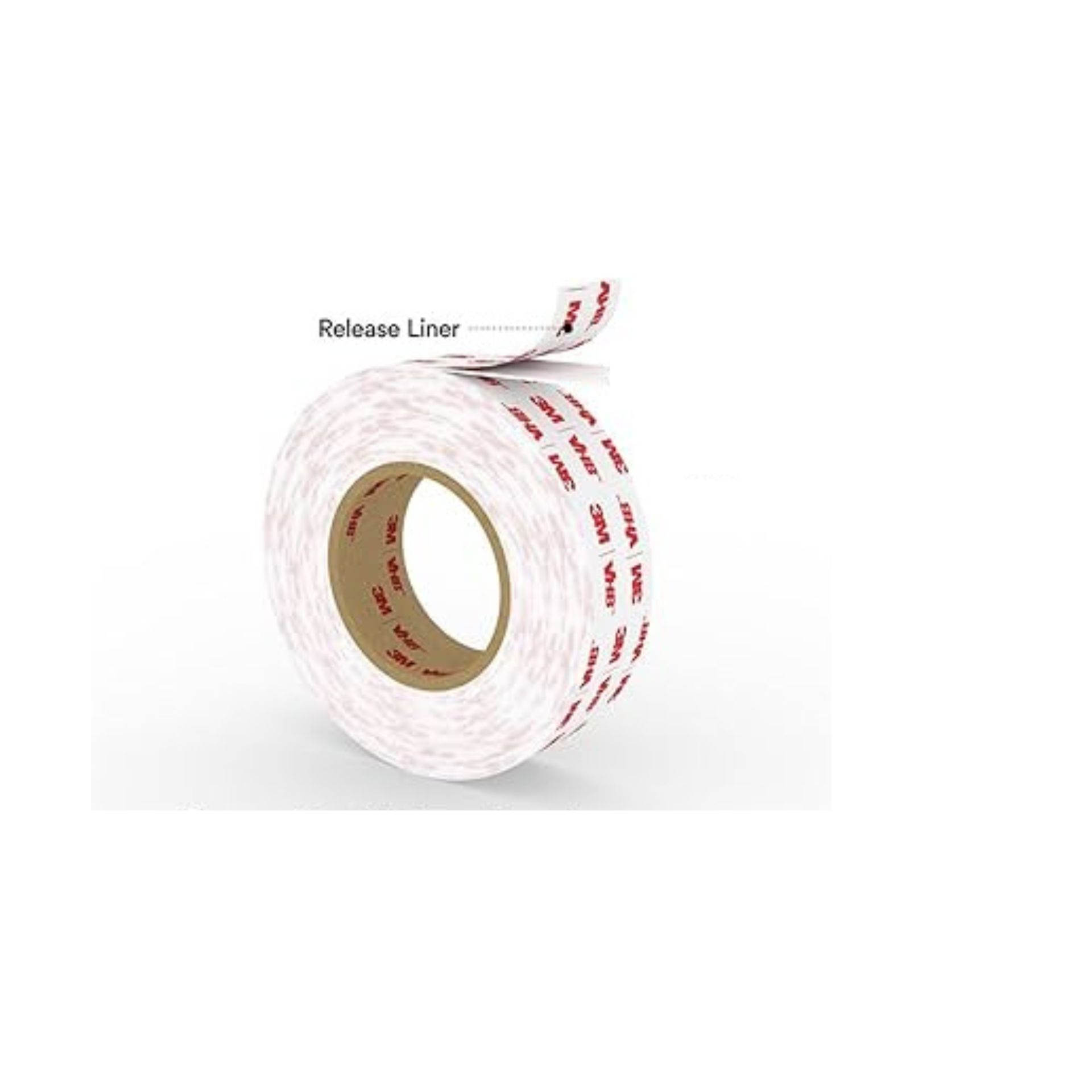

Release liner
Acrylic adhesive layer
Acrylic foam core
Bonding surface
Acrylic adhesive layer
Indoor and outdoor use depending on grade
Custom width and die-cut support for OEM applications
Better fit where normal foam tape is not enough
Clean bonding without visible fasteners
Suitable Use Direction
Why Buyers Use Acrylic Foam Tape
Cleaner Finish
No visible screws, rivets, weld marks, or drill holes.
Faster Assembly
Reduces drilling, welding, grinding, repainting, and adhesive curing time.
Strong Bonding Across Surfaces
Useful for metal, glass, aluminium, acrylic, painted surfaces, and selected plastics.
Vibration & Rattle Reduction
Helpful in automotive trims, appliances, machine panels, equipment covers, and industrial assemblies.
Outdoor-Grade Options
Suitable grades can support signage, cladding, ACP, and exterior mounting requirements.
Custom Widths & Die-Cuts
Useful for OEMs, assembly lines, trims, labels, panels, and repeat production.
Application Areas
Signage & Advertising
For acrylic letters, LED channel letters, ACP signage panels, outdoor boards, metal nameplates, display structures, and branding panels.
Automotive & EV
For emblems, trims, mouldings, dashboard parts, display bonding, accessories, and anti-rattle applications.
Construction, ACP & Interiors
For ACP support bonding, elevator panels, stainless steel decorative panels, aluminium frames, glass partitions, mirrors, and modular profiles.
Electronics & Electrical
For display screens, control panels, membrane switches, LED channels, plastic housings, nameplates, and die-cut adhesive parts.
Appliances
For refrigerator trims, washing machine panels, microwave/oven trims, control labels, glass-to-metal bonding, and vibration support.
OEM & Industrial Assembly
For machine panels, plastic-metal bonding, covers, sensor mounting, labels, trims, and custom die-cut bonding parts.
Choose Tape by Surface, Not Only by Width
Surface | Suitability Direction | Buyer Note |
Aluminium / Metal | Strong fit | Surface must be clean, dry, and oil-free |
Glass | Use clear or suitable acrylic foam grade | Check load, bonding area, and visibility |
Painted Metal | Good with correct grade | Test before bulk use |
Powder-Coated Metal | Needs grade confirmation | Surface energy and coating quality matter |
Acrylic / Polycarbonate | Suitable in selected applications | Confirm stress, thickness, and finish |
ABS / PVC Plastics | Possible with correct grade | Some plastics may need testing or primer |
PP / PE / LSE Plastics | Needs special selection | Do not assume standard tape will work |
Rough / Textured Surface | Use caution | More contact area and correct thickness may be required |

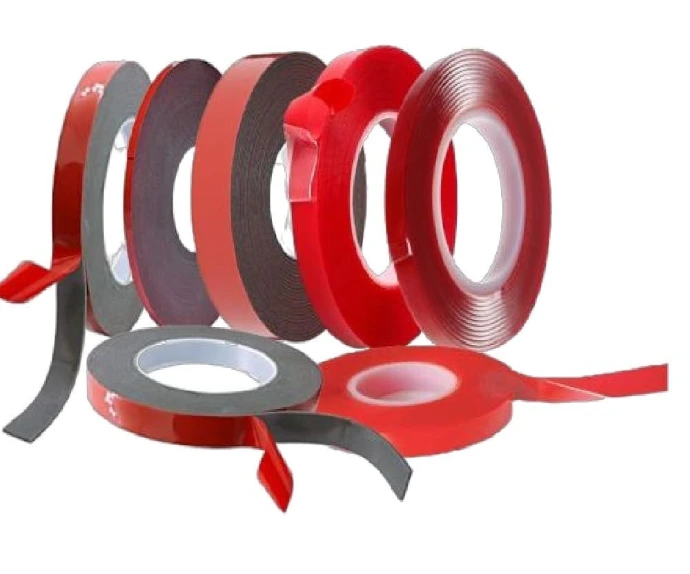

Available Acrylic Foam Tape Options

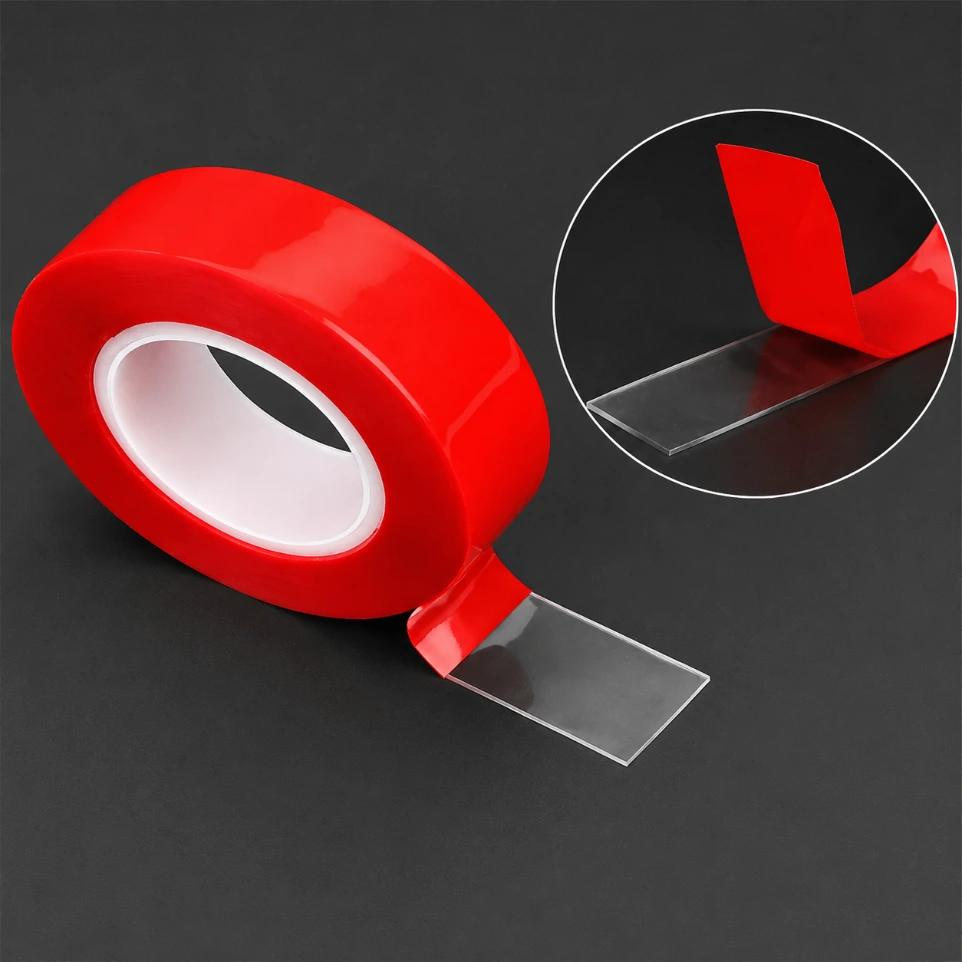

Clear Acrylic Foam Tape
Best for glass, transparent acrylic, display panels, and applications where the bond line should be less visible.
Black Acrylic Foam Tape
Useful for automotive trims, dark surfaces, exterior fittings, and areas where the tape line should blend with black surfaces.
Die-Cut Acrylic Foam Tape
For OEM assembly, labels, trims, electronics, gaskets, control panels, and repeat production processes.
Custom Width / Slit Roll Options
For manufacturers and project buyers who need specific roll width, liner type, roll length, or application format.

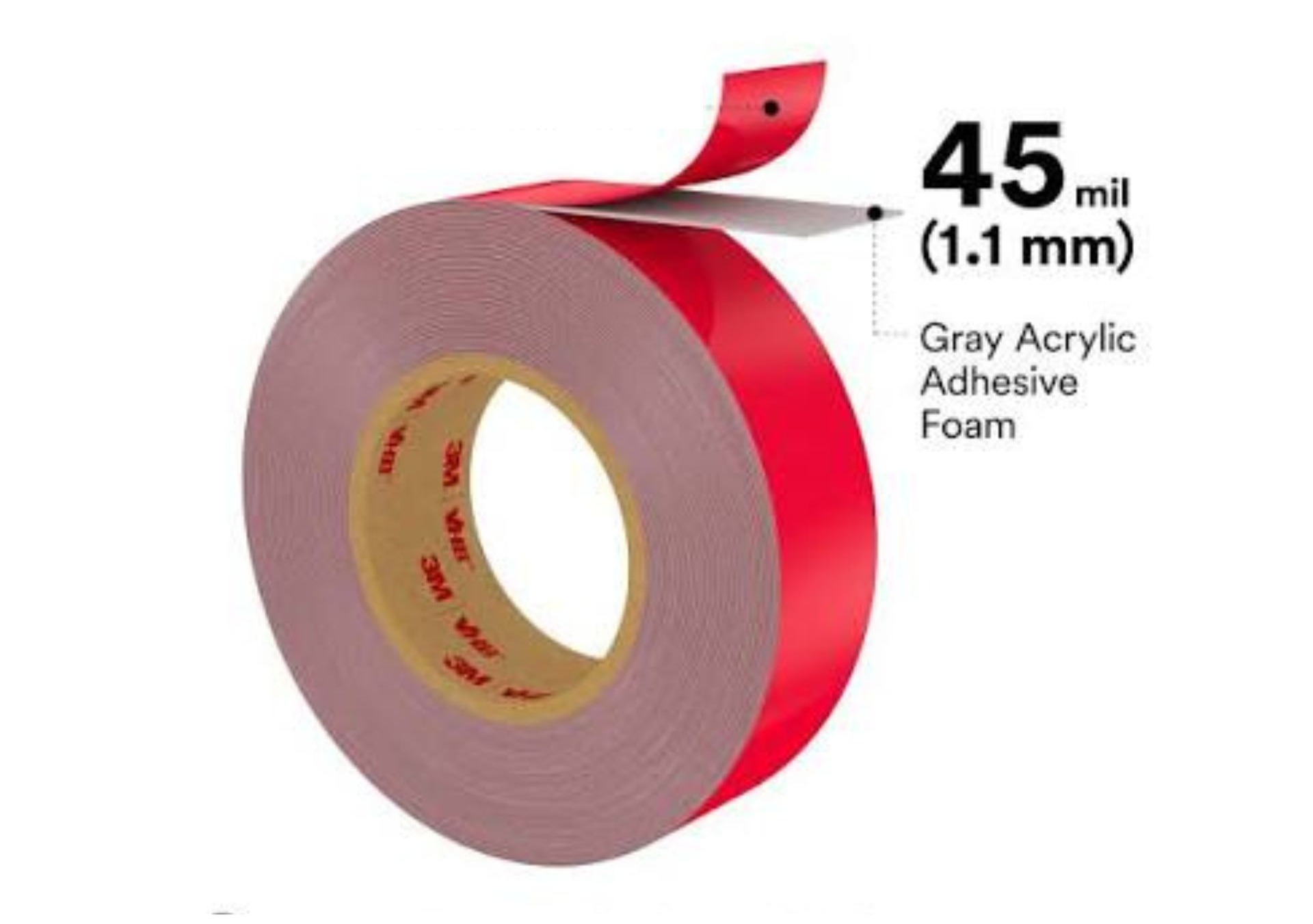

Grey Acrylic Foam Tape
Commonly used for metal, ACP, signage, appliance panels, industrial mounting, and fabrication work.
How to Select the Right Tape Grade
Selecting the right VHB-type acrylic foam tape depends on more than tape thickness or price.
Check These Before Ordering
· Surface material: metal, glass, acrylic, plastic, painted, powder-coated, etc.
· Application: mounting, panel bonding, trim attachment, signage, OEM assembly
· Environment: indoor, outdoor, heat, humidity, UV, vibration
· Load type: static load, dynamic load, vertical load, peel stress
· Bonding area: available tape contact area
· Thickness requirement: gap filling, surface unevenness, final finish
· Application method: manual, jig-based, production line, die-cut parts
· Testing requirement: sample approval before bulk order
Stronghold Recommendation:
Do not use one acrylic foam tape for every job. Share your surface, load, and application so the right tape can be suggested.

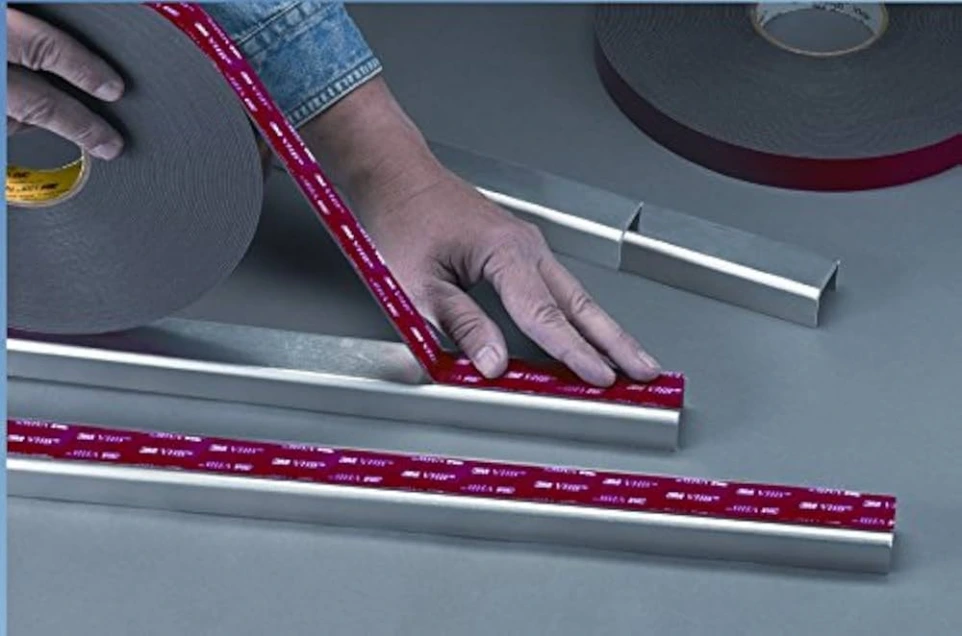

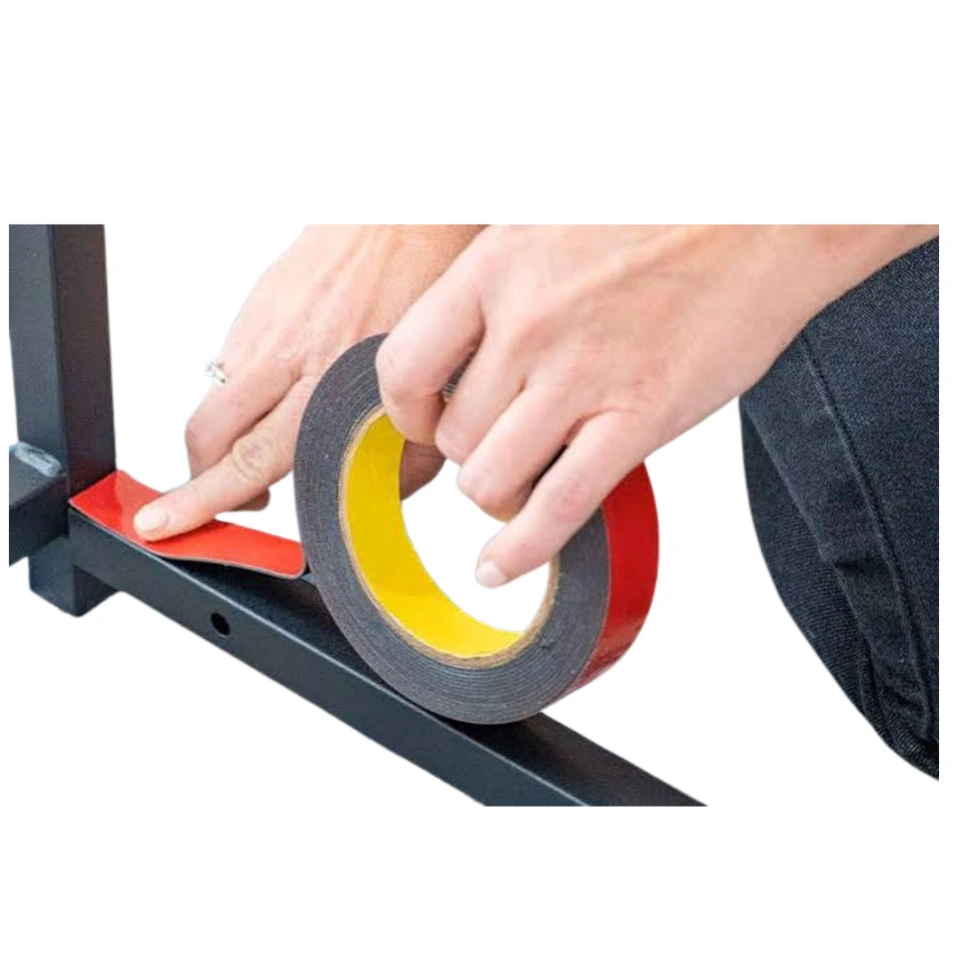

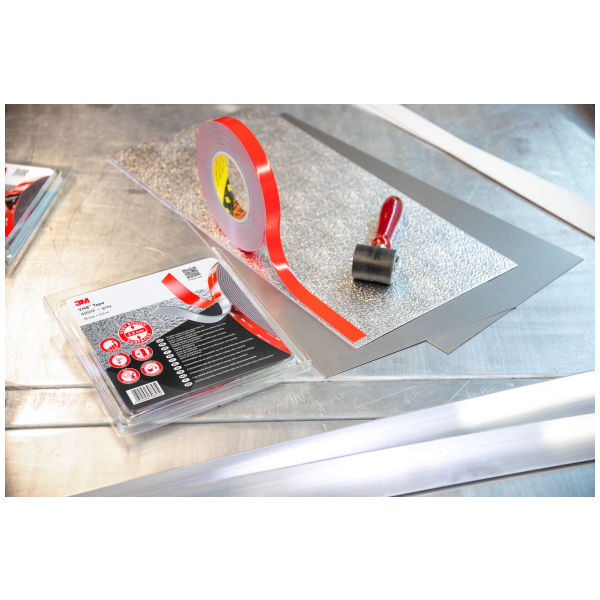

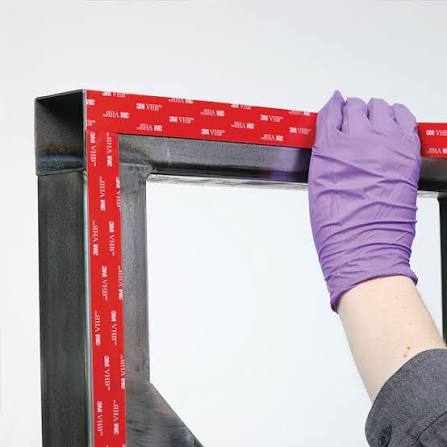

Application Method for Strong Bonding
1. Clean the surface to remove dust, oil, moisture, release agents, and loose particles.
2. Apply tape evenly without stretching it.
3. Use firm pressure across the full bonding area.
4. Avoid touching the adhesive surface with fingers.
6. Test the bond on actual material before bulk production or outdoor installation.
Acrylic Foam Tape vs Normal Foam Tape, Glue, Screws & Rivets
Option | Best For | Limitation |
Normal Foam Tape | Light mounting, simple indoor use | May fail in heat, load, outdoor use, or vibration |
Acrylic Foam / VHB-Type Tape | Industrial bonding, signage, trims, panels, OEM assembly | Needs correct surface preparation and grade selection |
Glue / Silicone | Irregular gaps, some construction applications | Messy finish, curing time, inconsistent application |
Screws / Rivets | Mechanical fixing and structural fastening | Visible holes, rust points, stress concentration, extra finishing |
Welding | Permanent metal joining | Heat marks, grinding, repainting, higher process effort |
Positioning Line:
Use acrylic foam tape when you need a cleaner, faster bonding method and the application is suitable for pressure-sensitive adhesive bonding.
Custom Width, Die-Cut & Bulk Supply Options
Stronghold Packaging supports application-specific acrylic foam tape requirements for manufacturers, fabricators, project buyers, OEMs, and export inquiries.
Available Support
· Standard rolls
· Custom slit widths
· Custom roll lengths
· Clear, grey, black options
· Die-cut parts for OEM assembly
· Sample support before bulk order
· Technical specification sharing on request
· Bulk carton packing
· Export inquiry support
Repeat supply planning for production buyers
Common Questions Before Buying Acrylic Foam Tape
“VHB” is commonly used by buyers to describe very high bond acrylic foam tapes, but it is also associated with a specific 3M product family. Stronghold Packaging uses safer naming such as acrylic foam tape, very high bond tape, or VHB-type tape.
In selected applications, yes. It can reduce visible fasteners, drilling, and finishing work. However, structural, safety-critical, or high-load applications must be tested and approved before use.
Outdoor-grade options are available, but performance depends on surface, load, UV exposure, heat, moisture, and correct application method.
It may work with the correct tape grade, but powder coating quality and surface energy vary. Sample testing is recommended.
Yes, suitable grades are commonly used for glass and aluminium bonding. Final recommendation depends on load, surface area, transparency needs, and installation conditions.
Thickness depends on gap filling, surface smoothness, load, final appearance, and application type. Share your surface and requirement for recommendation.
Yes. Custom width, slit rolls, and die-cut formats can be discussed for OEM, production, and repeat applications.
Yes. Sample testing is recommended before bulk order, especially for outdoor, automotive, signage, powder-coated, or plastic bonding applications.
Yes, selected acrylic foam tapes are used for trims, emblems, mouldings, accessories, and anti-rattle applications.
Yes, suitable grades can support ACP signage and panel bonding, but surface preparation, bonding area, and outdoor exposure must be checked.
Share Your Application & Get the Right Tape Recommendation
Not sure which acrylic foam tape grade, thickness, or width will work for your application? Share your surface and use case. Stronghold Packaging will help you select the right packaging and bonding solution with better protection, performance, and supply consistency.
